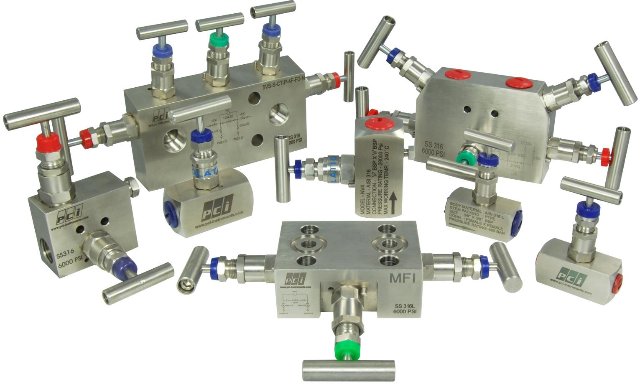

Our range of needle valves and manifolds are designed to withstand extreme operating pressures of up to 10,000 psi and temperatures of up to 4,000°C. The valves are manufactured from durable 316 stainless steel and incorporate a split stem with non-rotating ball tip. This ensures a tight bubble seal for accurate seating.
- Wide range of end connections available from 6mm to 12mm diameter (OD)
- Male or female connections
- NPT or BSP thread
- Available as two-way, three-way or five-way valves
- Direct or remote format
- Vent plug is available on request

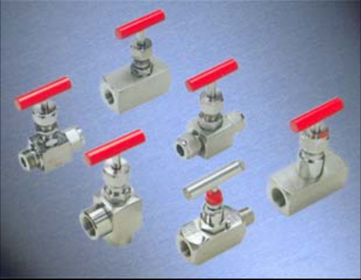

The Needle Valve is designed and manufactured in the UK to the highest standards to meet the requirements of the severe applications anticipated for this type of valve.
The valves are available with a wide range of end connections from 1/4" to 1/2" in male or female with NPT and BSP threads. It is also available with single or twin compression ends from 1/4" OD to 1/2" OD or 6mm OD to 12mm OD.
The design incorporates a split stem with a non rotating ball tip which ensures accurate seating and a bubble tight seal. The standard material is 316L stainless steel and available for applications up to 10,000psi and temperatures of 400°C. Each valve can also be supplied with a vent plug.
